SBW series

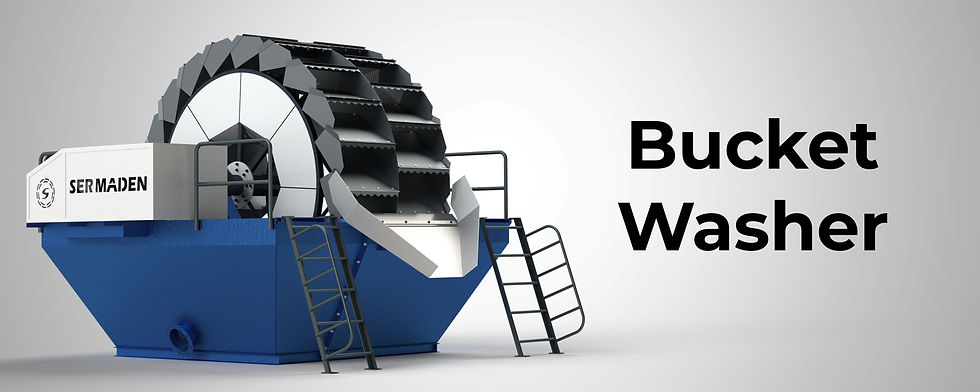

Bucket Sand Washer
A bucket sand washer, also known as a bucket wheel sand washer, is a type of sand washing equipment used to clean and separate sand and gravel materials. It typically consists of a bucket wheel, a water tank, a settling tank, and a driving device.
** A bucket sand washer is a type of sand washing machine that is commonly used in construction sites, quarries, and other similar applications.
** It works by using a series of buckets that scoop up sand from a body of water or a stockpile, and then transfer it up to a washing drum.
** Inside the drum, the sand is mixed with water and agitated to remove any impurities, such as clay, silt, and other debris.
** The cleaned sand is then discharged through a chute or conveyor, while the dirty water and other debris are drained off.
** Bucket sand washers are typically powered by electric motors or diesel engines, and can process large volumes of sand and water.
** They are often used in conjunction with other equipment, such as screens, crushers, and classifiers, to produce high-quality sand for construction purposes.
** They are generally easy to operate and maintain, and can be transported easily from one job site to another.
--- TECHNICAL DETAILS TABLE ---
A | B | C | D | E |
|---|---|---|---|---|
MODEL | MAIN
DIMENSIONS | CAPACITY | MOTOR
POWER | TOTAL
WEIGHT |
SBW 800 | 800 x 3150 mm | 50-60 tph | 2.2 kW | 4000 kg |
SBW 1600 | 1600 x 3150 mm | 100-120 tph | 4 kW | 5500 kg |
