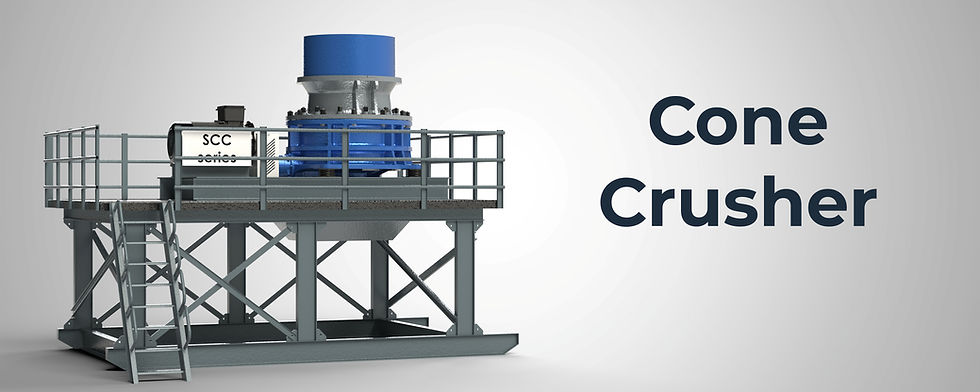

SCC series
Cone Crusher

Cone crusher is a secondary stage crusher type used for hard and abrasive stone types. Working principle of the crusher by means of squeezing material results in a durability and endurance of spare parts for a long time. Having an input size between 200-400 mm stone pieces, cone crusher gives 0-50 mm output product. Being the only choice against high abrasive stone types like basalt, granite, quartzite, gabbro etc., cone crusher becomes preferable choice of most stone quarries.



Cone Crusher | SER MADEN

*** The robust design of cone crushers allow to use this equipment to crush and mold stone and other mineral types with very high density and silica rate.

*** Special internal construction of cone crushers make it possible to minimize wearness rate of internal spare parts of the crusher, which makes it preferable for large-scale construction projects.

*** Compact shape design of cone crusher gives opportunity to install it on all semi-mobile (wheeled), mobile (tracked) and fixed chassis.


*** Working principle of cone crushers allows to reduce material size by means of compression of the fed product between bowl liner and mantle, which form fixed outer shell and eccentric moving central part.



*** Equipped with hydraulic adjustment system, cone crushers CSS can be adjusted according to material type, feeding size of the product and required capacity.

Working Principle of Cone Crusher | SER MADEN

--- TECHNICAL DETAILS TABLE ---

A
B
C
D
E
F
MODEL
CAPACITY
FEEDING SIZE
OUTPUT SIZE
MOTOR POWER
TOTAL WEIGHT
SCC 01
60-80 tph
120 mm
0-40 mm
90 kW
9.000 kg
SCC 02
150-200 tph
200 mm
0-70 mm
110 kW
12.000 kg
SCC 03
250-300 tph
350 mm
0-50 mm
160 kW
25.000 kg
