SSW series

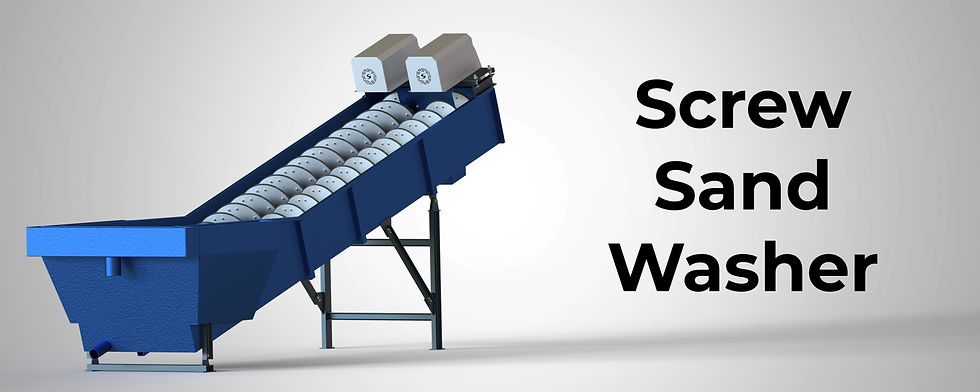

Screw Sand Washer

The Screw Sand Washer (also known as helix washer) is a type of sand washing equipment that uses a screw to remove impurities from sand and gravel materials. It was invented to efficiently clean and wash sand and gravel, particularly for construction and industrial applications.



Working Principle of Screw Sand Washer | SER MADEN

1. Main body - forms a single welded box, holding all parts of the screw washer together.

2. Washing screw is a rubber coated steel screw shape welded around main shaft. Each screw line is connected to the drive motor, which rotates two shafts outwards to each other.

3. Drive motors installed at the end of the main body are connected to screw shafts by means of belt-pulley system. Each drive motor rotates its own connected shaft.

4. Discharge groove installed below the end part of the main body discharges already washed and dewatered clean stone product to the conveyor belt.

5. Loading part - is a beginning part of the screw washer where wet product from the vibrating screen is loaded. Loading part of the screw washer is wider than other parts, so it can keep both processing stone product and water coming from the screen.

6. Water discharge tube is used to discharge sandy water of the screw washer at slow speed, so that product is washed thoroughly. Incliden installation of the screw washer allows to take clean product to the upper level side of the washer by means of rotating screw, where sandy water goes down and out by water discharge tube.

7. Excessive water discharge tube installed at the head part of the loading part of the screw washer allows to remove excessive water to prevent spillage of water from other sides of the main body.

Helix Washer | Screw Washer | Sand Washer | SER MADEN
Double Screw Sand Washer for Sale | Turkey | SER MADEN

*** Screw washer is a mainly used sand wahing equipment type, which cleans the finest product coming from the vibrating screen. Normally, feeding product size of the screw washer is up to 10 mm, thus making the equipment more efficient to use.

*** Screw washer can be manufactured as single or double screw depending on total capacity of the cleaned product. Also, depending on total capacity, different dimension models of the screw washer can be offered.

--- TECHNICAL DETAILS TABLE ---

A
B
C
D
E
MODEL
CAPACITY
HELIX DIMENSIONS
MOTOR POWER
WEIGHT
SSW 600
50-70 tph
600 x 6300 mm
2 x 5.5 kW
2370 kg
SSW 750
70-100 tph
750 x 7500 mm
2 x 7.5 kW
3250 kg
SSW 800
80-120 tph
800 x 8000 mm
2 x 7.5 kW
3700 kg
SSW 1000
90-140 tph
1000 x 10.000 mm
2 x 11 kW
5500 kg
